2017-09-21

Displaying Multiple Google Charts in React (react-google-charts)

problemsolving, programming

banner

I was working on displaying multiple GitHub traffic charts using a Google Chart NPM package for React, react-google-charts.

Problem

Out of many charts, only the first one chart is populated.

Question

How do we fix it?

TL;DR

Use a unique graph_id value.

Getting Started by Copying & Pasting

Here is the sample code in Quick Start section.

https://gist.github.com/dance2die/c2419393ab06a98f8207654536c027c5

In my case, I needed to display a line chart so updated chartType to LineChart.

https://gist.github.com/dance2die/0e82a44251dad3a511341b9906bb9f62

So the code for displaying multiple charts is as follows.

https://gist.github.com/dance2die/9c75c883cee40937db79593591f10eab

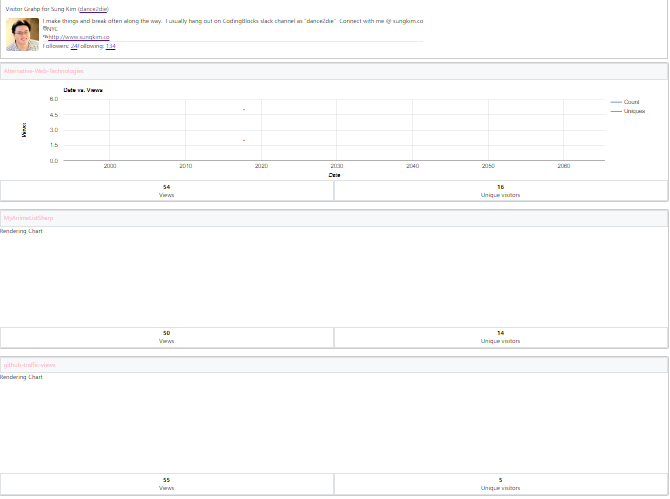

But for some reason, it was populating one graph.

Resolution

After hours of researching and debugging, I found the problem.

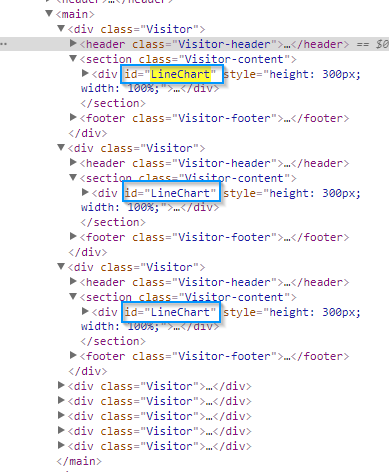

Here you see that each chart had the same id="LineChart".

Each chart needs to have a unique ID. I chose an easy way out and used shortid NPM package.

https://gist.github.com/dance2die/3c7bd30aa6f54d3dc62ab279fd2a8847

Conclusion

Each chart_id needs to be unique.

I hope you don't struggle to populate multiple Google Chart graphs.

You can find the commit detail on GitHub in my code.
